Low-energy Buildings Complementary Products
Energy Recovery Ventilator | Integrated Air Handling Unit
Product Application Patents
Two-way Air Flow ERV Patent No.: 202223573489.0
2. Air Valve Device Patent No.: 202223127671.3
24/7 Careful Guard, Creating a Healthy Environment
Compared to conventional buildings, ultra-low energy buildings barely engage in thermal exchange with the outside. They incorporate advanced ventilators with high-efficiency heat recovery systems. These systems are responsible for delivering a continuous supply of clean and fresh air to the indoors, which significantly contributes to the creation of a comfortable living environment.
Product Features
1. Dual-filtration ensures the air clean and fresh
G4 Pre filter + H12 HEPA filter
Remove dirt, dust, PM2.5, and other pollutants from the air, enhancing the quality of the air
PM2.5 single-pass purification efficiency>98%

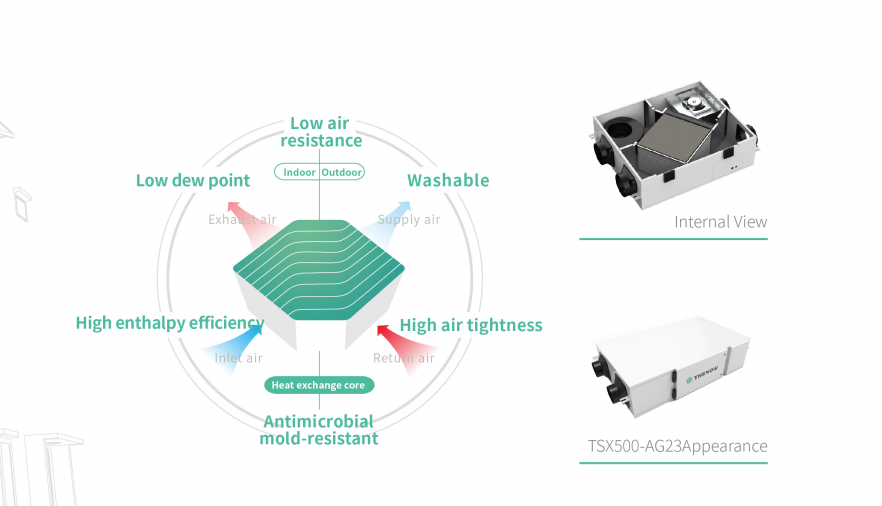

2. High-polymer membrane heat exchange core, energy-saving and washable
Utilizes a high polymer membrane heat exchange core, anti-bacterial, flame-retardant, and washable
Featuring high thermal conductivity, hydrophilicity, and high permeability for water molecules
Enthalpy recovery efficiency(Cooling) > 65%
Enthalpy recovery efficiency(Heating) > 70%
Thermal recovery efficiency(Cooling) >70%
Thermal recovery efficiency(Heating) > 75%
3. Intelligent control, easy and convenient operation
Full touchscreen colored controller, 3 running modes-heat exchange ventilation, bypass and auto mode
Support WiFi, equipped with temperature, humidity and PM2.5 sensors, RS485 interface
3 fan speed, freely changed
In AUTO mode, the air flow speed is automatically adjusted based on real-time IAQ monitoring
4. New structure with variable speed fan, more efficient and comfortable
Newly designed air duct structure ensures a more even and rational distribution of air.
Lower air resistance allows the fan to operate at its maximum efficiency
High-efficiency variable frequency motors offer superior energy savings
5. Isolate the outdoor noise, enjoy comfortable and quiet life
No need opening the window, say goodbye to bad weather and outdoor noise
Ceiling mounted installation, free from noise
Dynamically balanced centrifugal fans reduce the vibration and noise generated during operation
6. Aesthetics meets precision engineering in perfect harmony
Simple and elegant appearance, highlighting refinement and texture
The internal structure features enhanced sealing, significantly reducing air leakage rate
Removable access door allows for convenient filter cleaning and replacement
7. Independent bathroom exhaust for an unparalleled living experience
Equipped with an independent bathroom exhaust function, the stale air from the bathroom can be exhausted to outdoor by the control of a dedicated electric damper, eliminating the need for additional fans.
8. Bypass function, more energy saving in transitional seasons
Automatic bypass mode conserves energy in mild seasons by routing filtered fresh air directly indoors, reducing resistance and motor speed for a quieter, more efficient system

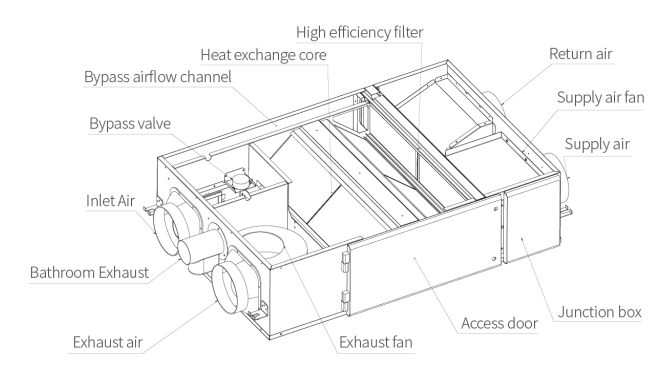

Product Structure Schematic
Technical Data
| Model | TSX150-AGP23 | TSX250-AGP23 | TSX350-AGP23 |
| Supply Air(H) (m³/h) | 150 | 250 | 350 |
| Exhaust Air(H) (m³/h) | 150 | 250 | 350 |
| Static Pressure-Supply Air Outlet (Pa) | 100 | 105 | 110 |
| Static Pressure-Exhaust Air Outlet (Pa) | 90 | 90 | 90 |
| Input Power (W） | 65 | 94 | 155 |
| Ventilation Power (W·h/m³） | 0.433 | 0.376 | 0.442 |
| Supply Air/Inlet Air Ratio | 95% | 95% | 95% |
| Enthalpy Efficiency-Cooling | 65% | 65% | 65% |
| Thermal Efficiency-Cooling | 70.5% | 71.3% | 72.0% |
| Enthalpy Efficiency-Heating | 74% | 76% | 75.40% |
| Thermal Efficiency-Heating | 78.20% | 77.50% | 76.90% |
| Noise dB(A) | 37 | 42 | 43 |
| PM2.5 Purification Efficiency | 95% | 95% | 95% |
| Size (WxDxH mm） | 930*660*230 | 1000*685*255 | 1055*800*255 |
| Vent Diameter | 110mm | 160mm | 160mm |
| Unit Height | 230mm | 255mm | 255mm |
| Return Air Filter Efficiency | G4 | ||
| Inlet Air Filter Efficiency | G4 | ||
| Supply Air Filter Efficiency | H12 | ||
| HEPA Filter | Antibacterial and Haze Protection | ||
| Finish | SPPCC+Double-sided powder coating on both Inner and outer surfaces | ||
| Insulation | Internal insulation | ||
| Exchange Core | Antibacterial, Mildew-Resistant, Washable Polymer Material | ||
| Bypass Function | Yes | ||
| Bathroom Exhaust Air Function | Yes | ||
| Access Door | Side | ||
| Patent | Two-way Air Flow ERV Patent No.: 202223573489.0 Air Valve Device Patent No.: 202223127671.3 | ||
| Air Filtration | Shanghai Technical Guidelines for Ultra-Low Energy Consumption Buildings (Provisional) GB/T 21087-2020 Air-to-Air Energy Recovery Unit GB/T 34012-2017 Air Purification Unit for Ventilation Systems GB4706.1-2005 Safety of Household and Similar Electrical Appliances | ||
| *The above datas are all from testing agencies, and our company provides design technical parameters. The structural images displayed are functional diagrams and are not necessarily the exact structures, the final datas are subjects to actual product. | |||
